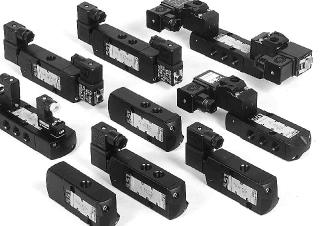

世格551系列滑閥,SCG353A051

世格551系列滑閥,SCG353A051

根據防護等級IP67，中東歐10嵌入螺釘端子線圈的防水外殼

按照“ATEX”和國家標準的危險場所防爆電磁閥

據“NEMA”標準，防爆和防水電磁閥

軟管連接處決（3“只）

符合“UL”標準

視覺指示和/或峰值電壓抑制插塞

電子計時器

閥門也可以用FPM（含氟彈性體）隔膜和密封材料供應。使用適當?shù)膕uffi點ˉx

函identifi陽離子

安裝

該閥可以安裝在任何位置，而不影響操作

螺紋管連接：G（ISO 228/1）或壓縮擬合

對于壓縮擬合類型的密封性受到壓縮的墊片上噴吹管實現

使用橡膠墊片的密封件將允許管道有輕微錯位

其他的管螺紋可根據要求提供

安裝/維修說明包含每個閥門

備件包和更換線圈可

diaphragm pulse valves are especially designed for dust collector service

applications, combining high fl ow, long life and extremely fast opening and

closing to produce reliable and economical operation

? Integral compression fi ttings for fast, easy, secure installation

? The high quality diaphragms are reinforced and wear resistant to guarantee a

long operating life, even under harsh conditions

? The integral operators are provided with epoxy moulded F-class coils. Various

optional waterproof and explosionproof solenoids for use in potentially explosive

atmospheres (gas & dust) according to Directive ATEX 94/9/EC can be mounted

on the same basic valve (see pages 50 to 58)

? The components satisfy all relevant EC directives

Differential pressure (PS) 0,35 - 8,5 bar [1 bar = 100kPa]

Ambient temperature range -20 to +85°C

CONSTRUCTION

Body Aluminium

Core tube Stainless steel

Core and plugnut Stainless steel

Springs Stainless steel
